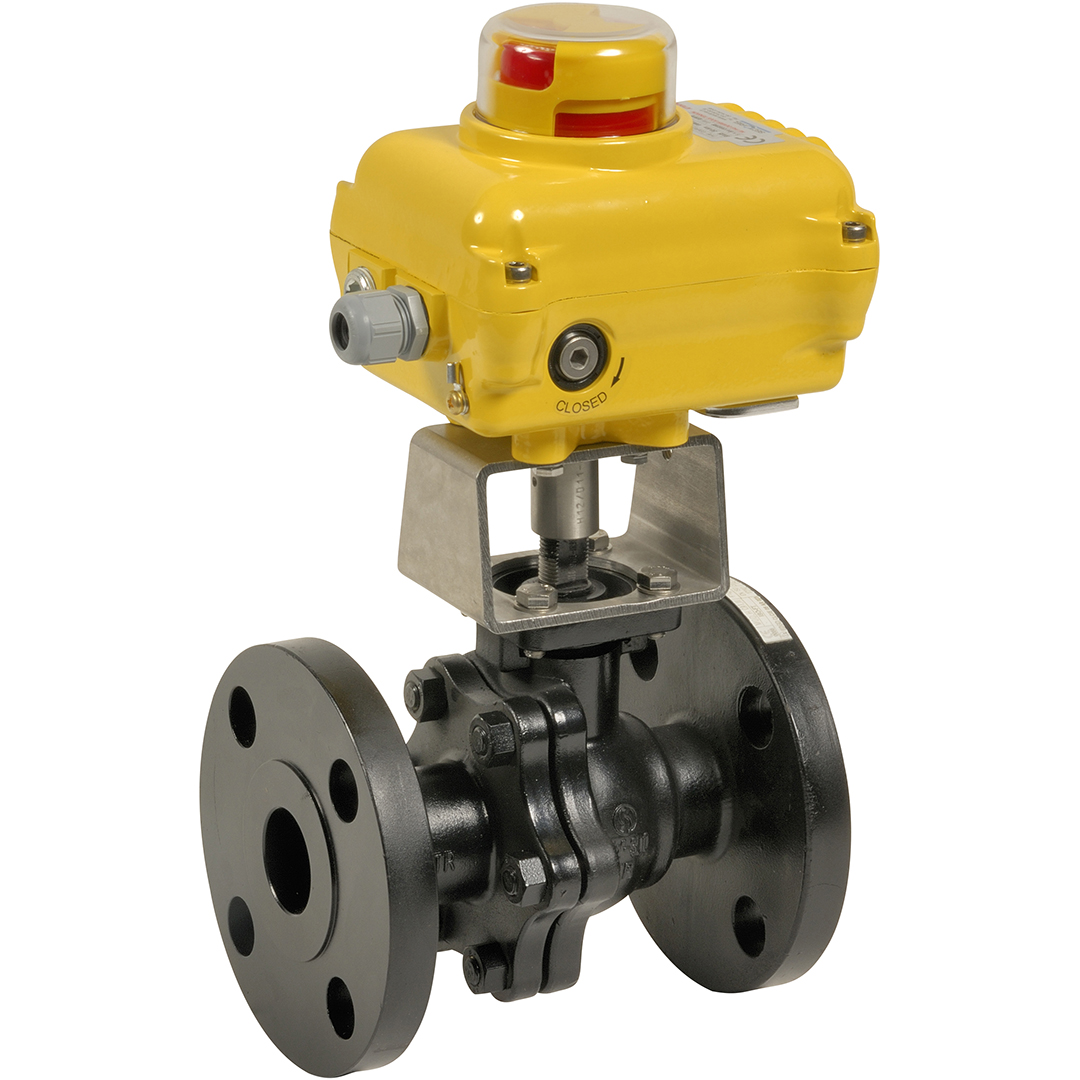

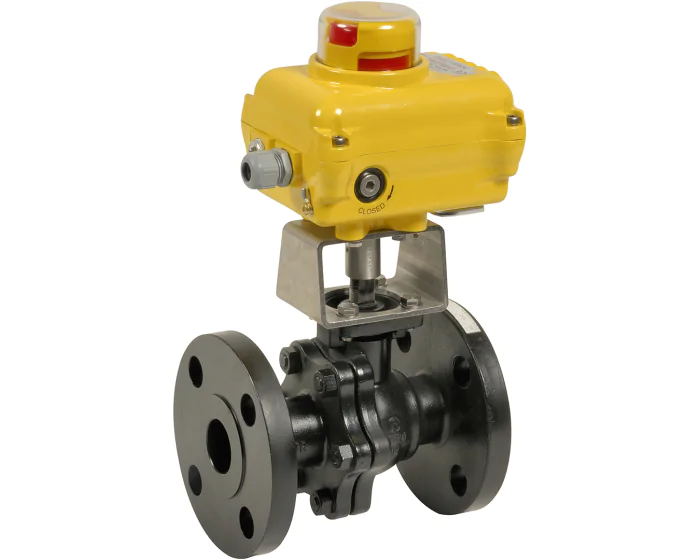

Split-body carbon steel ball valve 768 ANSI 300 1/2" + SA05 230V AC
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Shaft/stem matérial | Stainless steel 316 |
| Manual override | By key |
| Declutchable | No |
| DN | DN15 - 1/2'' |
| Duty service | S4 duty service - 50% |
| Face to Face (mm) | 140.0 |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| Recommended location | Outdoor |
| Body material | Carbon steel A216 WCB (1.0619) |
| Number of ways | 2 |
| Bore | Full |
| Packing gland | Graphite |
| PS (bar) | 50 |
| Power (W) | 6 |
| Connections | Flanged #300 PN50 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | SA 05 |
| Electric actuator series | SA/NA series |
| Seats | TFM 1600 |
| Operating time (s) | 17.0 |
| Voltage | 230 V AC |
| TS max (°C) | 200 |
| TS min (°C) | -29 |
| Ball valve design | 2-piece body |
| Warranty period | 1 year |
| CE | Risk category III |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged #300 PN50 Carbon steel A216 WCB (1.0619) Full 2-piece body DN15 - 1/2'' | 274342023010 | S1006030 |
€603.51
(excl. btw)
|
add to cart |
| Flanged #300 PN50 Carbon steel A216 WCB (1.0619) Full 2-piece body DN20 - 3/4'' | 274343023010 | S1006031 |
€604.11
(excl. btw)
|
add to cart |
| Flanged #300 PN50 Carbon steel A216 WCB (1.0619) Full 2-piece body DN25 - 1'' | 274344023010 | S1006032 |
€659.81
(excl. btw)
|
add to cart |
| Flanged #300 PN50 Carbon steel A216 WCB (1.0619) Full 2-piece body DN40 - 1''1/2 | 274346023010 | S1006033 |
€734.33
(excl. btw)
|
add to cart |
| Flanged #300 PN50 Carbon steel A216 WCB (1.0619) Full 2-piece body DN80 - 3'' | 274349023150 | S1006034 |
€1,852.63
(excl. btw)
|
add to cart |
| Flanged #300 PN50 Carbon steel A216 WCB (1.0619) Full 2-piece body DN100 - 4'' | 274350023150 | S1006035 |
€2,322.81
(excl. btw)
|
add to cart |
| Flanged #300 PN50 Carbon steel A216 WCB (1.0619) Full 2-piece body DN150 - 6'' | 274352023180 | S1006036 |
€3,817.17
(excl. btw)
|
add to cart |
